Products
Product Category
Automatic Transformer Test system
Basic Accuracy: 0.05%.
Frequency: 20Hz-2MHz
Electric Level: 5mV-20V/50uA-100mA
DC Bias Current Source 0+/-40V, 0+/-100mA
Linux OS
LCR Function Optional
Basic Accuracy: 0.05%.
Frequency: 20Hz-2MHz
Electric Level: 5mV-20V/50uA-100mA
DC Bias Current Source 0+/-40V, 0+/-100mA
Linux OS
LCR Function Optional

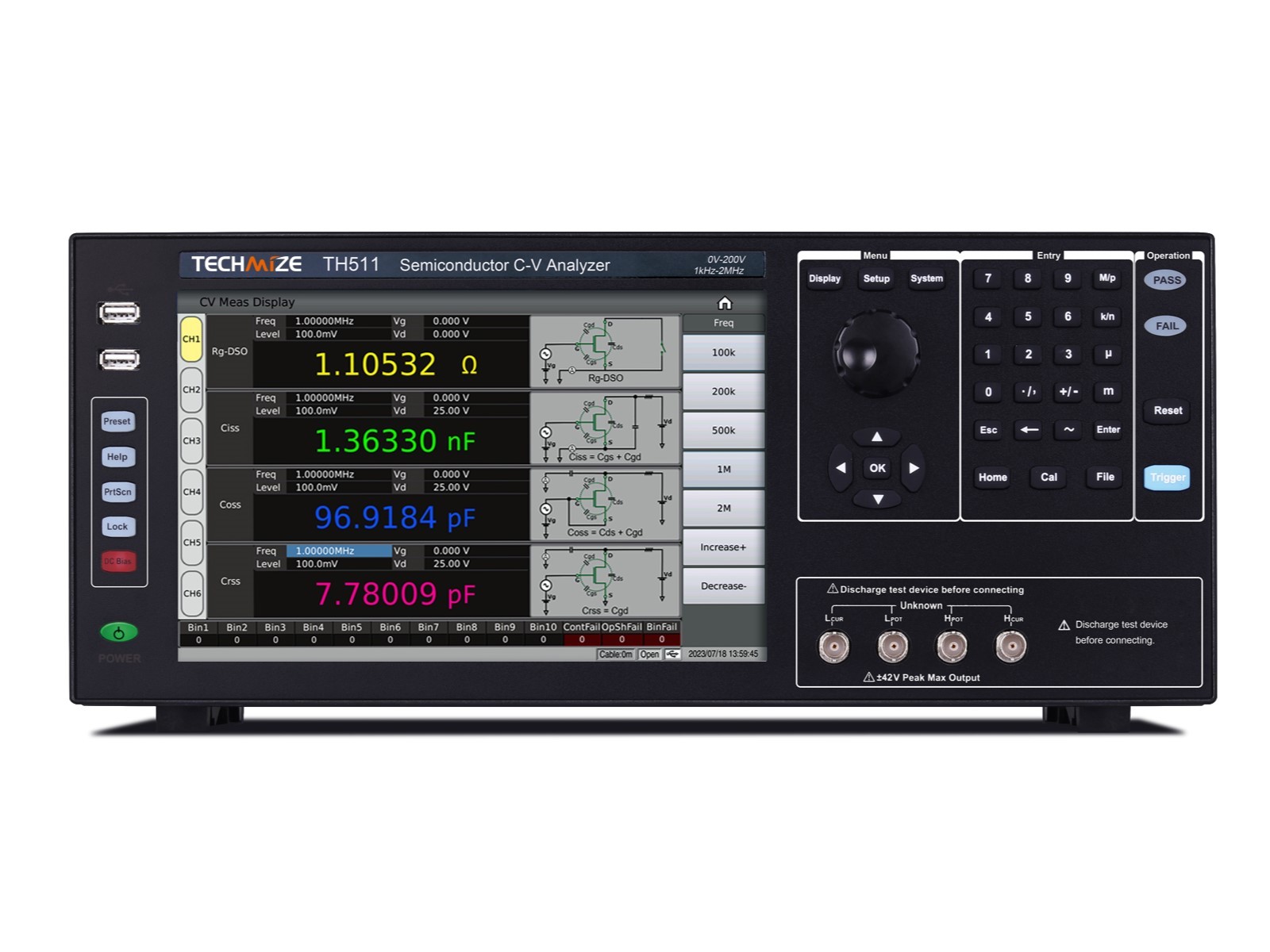

Semiconductor C-V Characteristic Analyzer
Frequency 1kHz-2MHz
Parameter Ciss, Coss, Crss, Rg
Vgs Range +/-40V
Vds Range 200V/1500V/3000V
Channels 1 - 6
Frequency 1kHz-2MHz
Parameter Ciss, Coss, Crss, Rg
Vgs Range +/-40V
Vds Range 200V/1500V/3000V
Channels 1 - 6

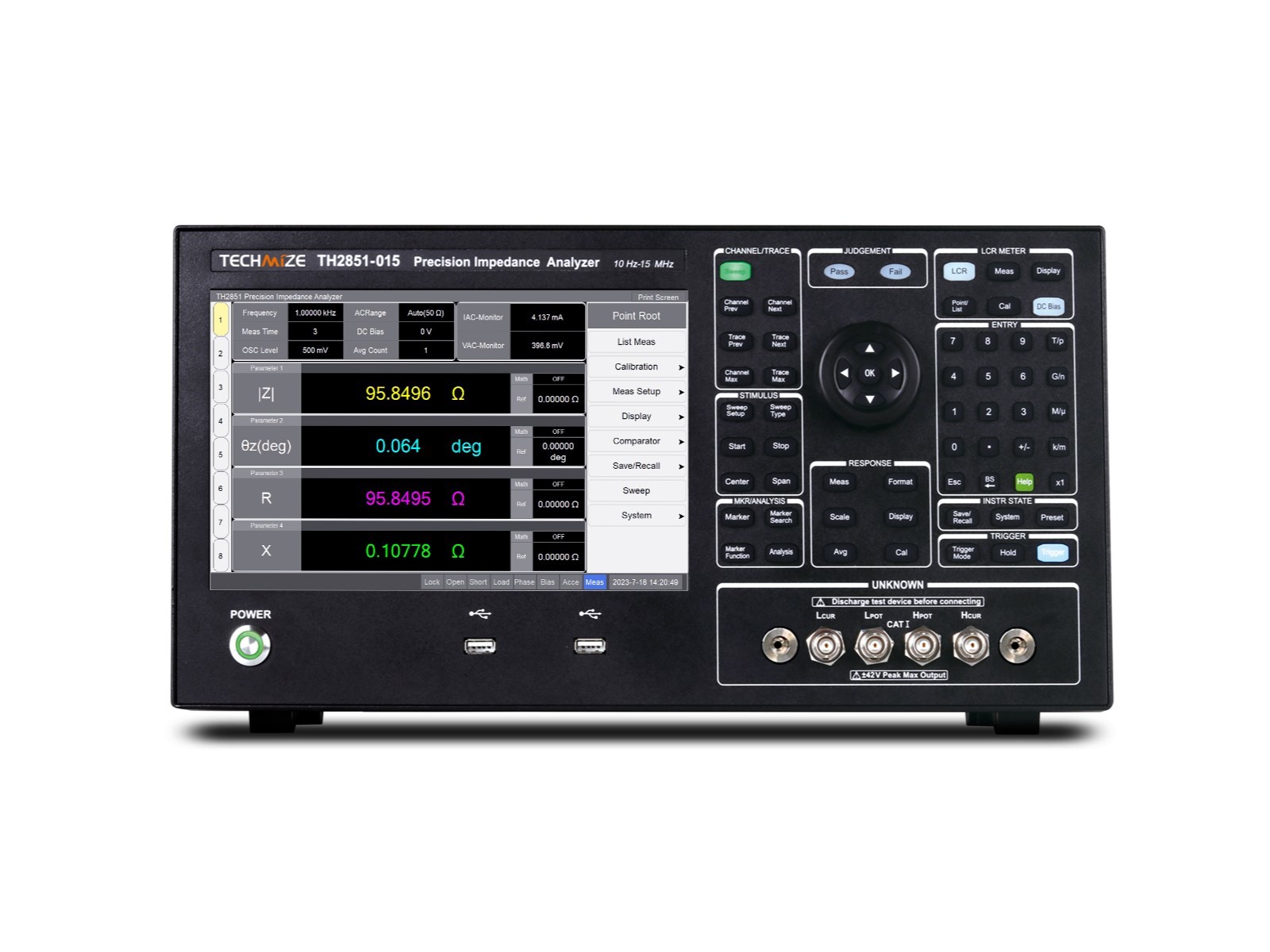

Precision Imdepance Analyzer
Frequency 10Hz-130MHz.
Basic Accuracy: 0.08%
Auto Balance Bridge Technology
AC Signal: 5mV-2V
DC Bias: 0+/-40V, 0+/-100mA
Frequency 10Hz-130MHz.
Basic Accuracy: 0.08%
Auto Balance Bridge Technology
AC Signal: 5mV-2V
DC Bias: 0+/-40V, 0+/-100mA

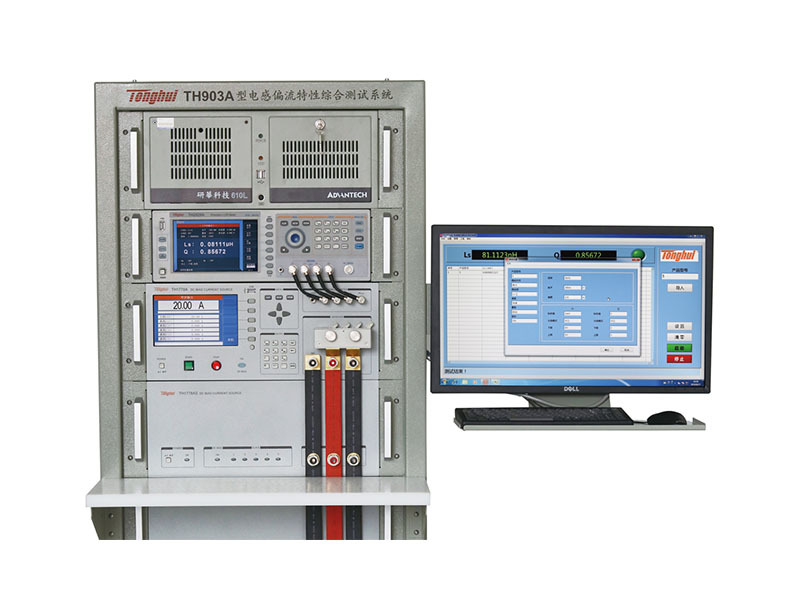

Inductance DC Bias Test System
Main Function:
Inductor/reactor DC characteristic analysis
Iron core/ferrite material saturation characteristics analysis
DC characteristics analysis of other materials
Main Function:
Inductor/reactor DC characteristic analysis
Iron core/ferrite material saturation characteristics analysis
DC characteristics analysis of other materials
Automatic Transformer Test system
Basic Accuracy: 0.05%
Frequency: 20Hz-1MHz
AC signal: 5mV-2V(Option 10V)
DC Bias Current Source 0+/-10V, 0+/-100mA
Max Test PINS: 20PIN
LCR Function Optional
Basic Accuracy: 0.05%
Frequency: 20Hz-1MHz
AC signal: 5mV-2V(Option 10V)
DC Bias Current Source 0+/-10V, 0+/-100mA
Max Test PINS: 20PIN
LCR Function Optional
Comprehensive testing system for winding components
Test: Turn, the ratio of turns, the voltage Ratio, LK, Ls, Q, Cx, Z, ACR, DCR, PS, BL, AC withstand voltage, DC withstand voltage, insulation resistance, coil pulse, etc.
Test: Turn, the ratio of turns, the voltage Ratio, LK, Ls, Q, Cx, Z, ACR, DCR, PS, BL, AC withstand voltage, DC withstand voltage, insulation resistance, coil pulse, etc.
Frequency 20Hz-10MHz
Basic Accuracy: 0.05%
Auto Balance Bridge Technology
Spot measurement, list sweep and graphic sweep
Basic Accuracy: 0.05%
Auto Balance Bridge Technology
Spot measurement, list sweep and graphic sweep
Frequency 4Hz-10MHz
Basic Accuracy: 0.05%
Auto Balance Bridge Technology
Spot measurement, list sweep and graphic sweep
AC Signal: 20V/100mA DC Bias: 0+/-40V, 0+/-100mA
Basic Accuracy: 0.05%
Auto Balance Bridge Technology
Spot measurement, list sweep and graphic sweep
AC Signal: 20V/100mA DC Bias: 0+/-40V, 0+/-100mA

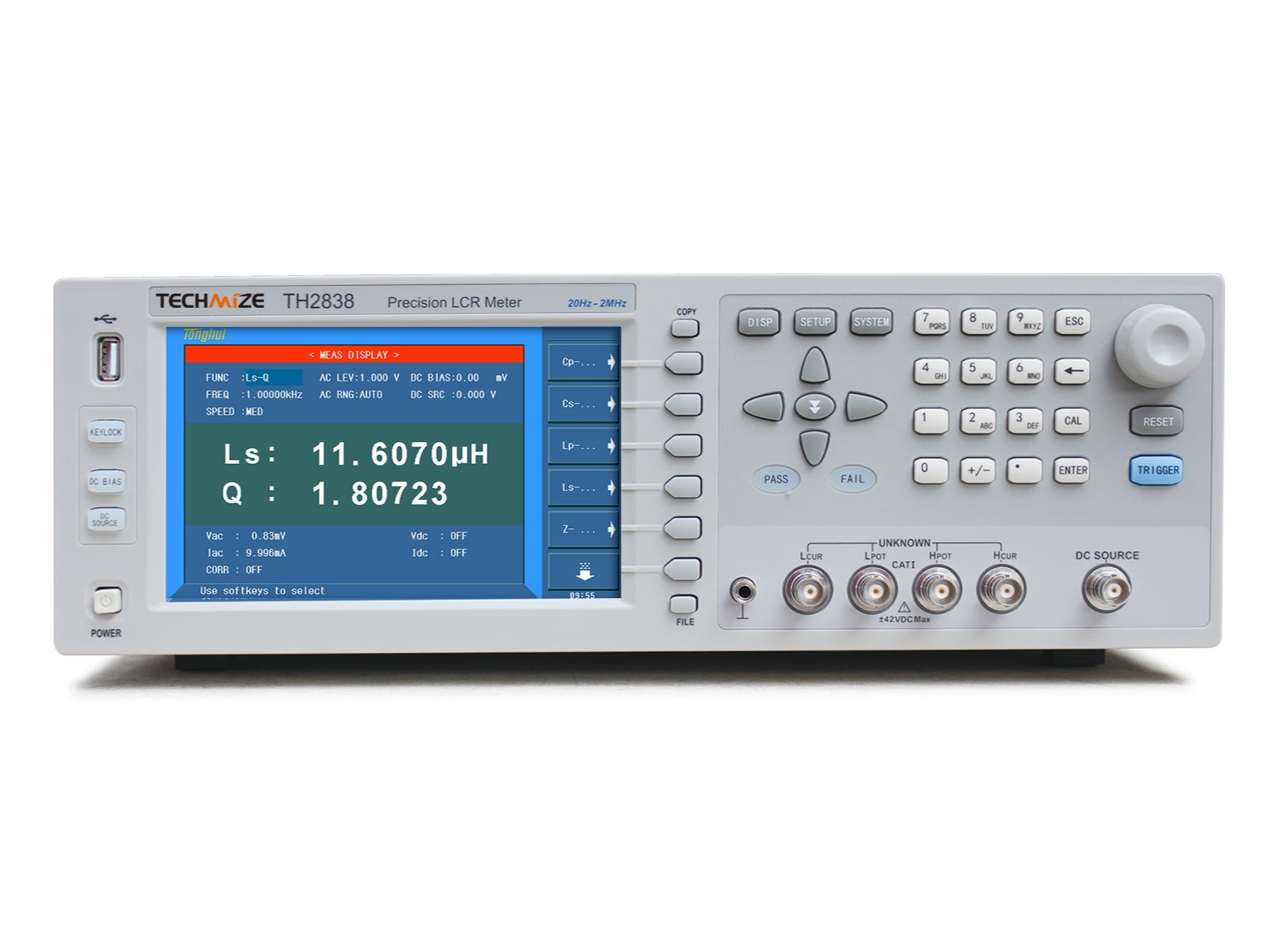

Precision LCR Meter
Frequency 20Hz-2MHz.
Basic Accuracy: 0.05%
Auto Balance Bridge Technology
AC Signal: 5mV-2V
DC Bias: 0+/-10V, 0+/-100mA

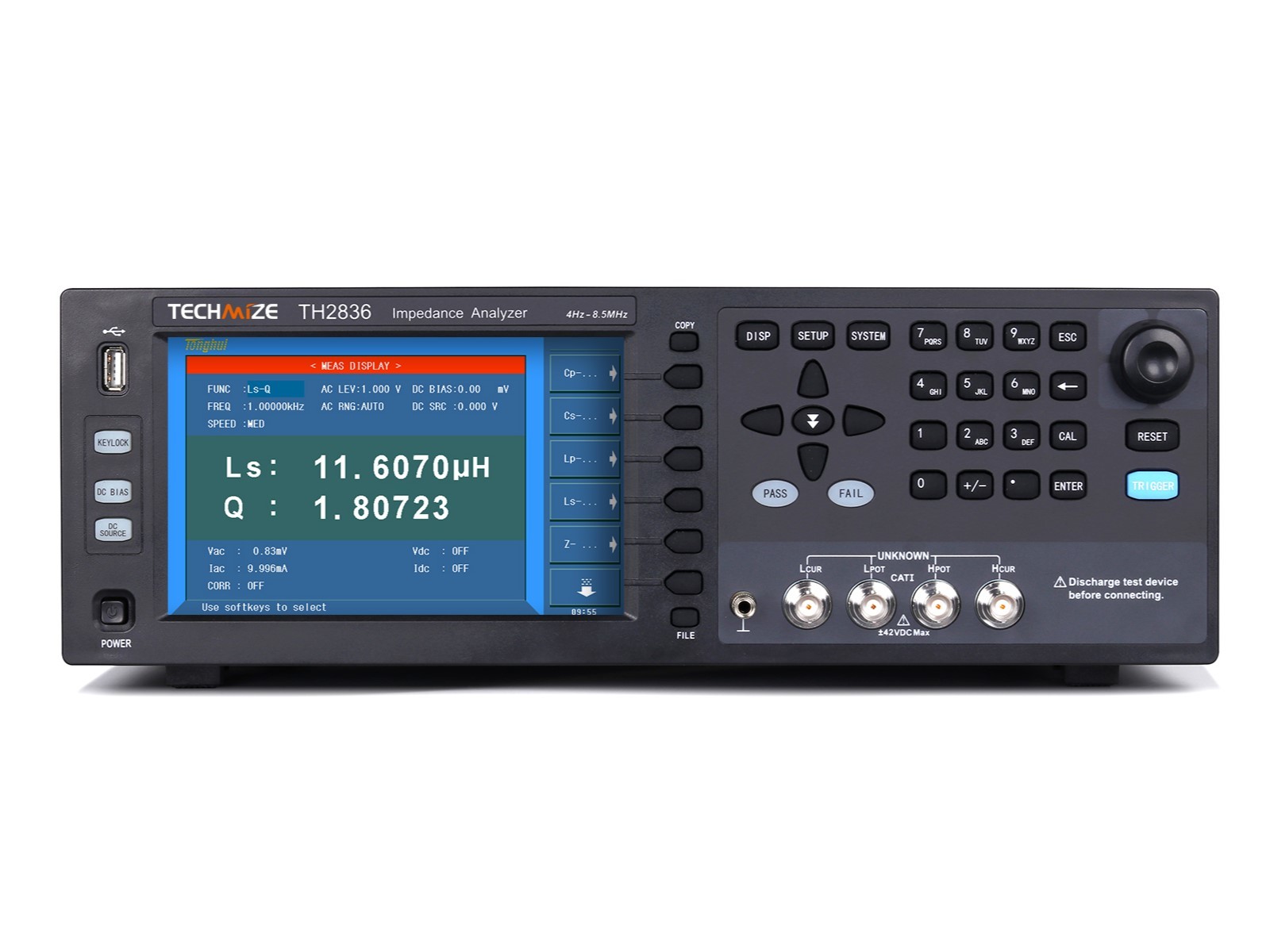

High Frequency Economic LCR Meter
Frequency 4Hz-8.5MHz.
Basic Accuracy: 0.1%
AC Signal: 5mV-2V
DC Bias: 0+/-10V, 0+/-100mA
Frequency 4Hz-8.5MHz.
Basic Accuracy: 0.1%
AC Signal: 5mV-2V
DC Bias: 0+/-10V, 0+/-100mA
Super Fast LCR Meter
Frequency 20Hz-2MHz.
Basic Accuracy: 0.05%
AC Signal: 20V/100mA
DC Bias: 0+/-40V, 0+/-100mA
AC Current Source: +/-2A
Frequency 20Hz-2MHz.
Basic Accuracy: 0.05%
AC Signal: 20V/100mA
DC Bias: 0+/-40V, 0+/-100mA
AC Current Source: +/-2A
Compact LCR Meter
Frequency 100kHz/200kHz.
Basic Accuracy: 0.05%
AC Signal: 5mV-2V, 100μA-20mA
Frequency 100kHz/200kHz.
Basic Accuracy: 0.05%
AC Signal: 5mV-2V, 100μA-20mA
