TH2851 Series
Product description
Features
■ Test frequency: 10Hz-130MHz
■ High precision: using automatic balance bridge technology, four-terminal pair test configuration
■ High stability and consistency
■ High speed: the fastest test speed up to 5ms
■ High resolution: 10.1-inch capacitive touch screen, resolution 1280*800
■ Three test methods: point test, list scan, and graph scan
■ 1601 point multi-parameter list scanning function
■ Four-parameter measurement
■ 4-channel graphic scanning function, each channel can display 4 curves, 16 kinds of split-screen display modes for channels and curves
■ Powerful sorting: 10 grades sorting in LCR mode
■ Graphic scanning mode, each curve is sorted individually
■ High compatibility: Support SCPI instruction set, compatible with KEYSIGHT E4990A, E4980A, E4980AL, HP4284A
Applications
■ Passive component:
Impedance parameter estimation and performance analysis of capacitor, inductor, magnetic core, resistor, piezoelectric devices, transformers, chip components and network components
■ Semiconductor component
Parasitic parameter test and analysis of LED driver integrated circuit C-VDC features of varactors
Parasitic parameter analysis of transistors or integrated circuit
■ Other components
Impedance assessment of printed circuit boards, relays, switches, cables, batteries
■ Dielectric material
Dielectric constant and loss angle evaluation of plastics, ceramics and other materials
■ Magnetic materials
Magnetic permeability and loss angle assessment of ferrite, amorphous body and other magnetic materials
■ Semiconductor materials
Dielectric constant, electrical conductivity and C-V characteristics of semiconductor materials
■ Liquid crystal cell
Dielectric constant, elastic constant and C-V characteristics of liquid crystal cell
Specifications
| Model | TH2851-015 | TH2851-030 | TH2851-050 | TH2851-080 | TH2851-130 | |
| Test Frequency | 10Hz-15MHz | 10Hz-30MHz | 10Hz-50MHz | 10Hz-80MHz | 10Hz-130MHz | |
| Basic Accuracy | 0.08% | |||||
| AC Singal | Voltage | 5mVrms to 2Vrms | ||||
| Current | 200μArms to 20mArms | |||||
| DC Bias | Voltage | 0V to +/-40V | ||||
| Current | 0mA to +/-100mA | |||||
Accessary
| Standard | ||||||
| Accessories name | Model | |||||

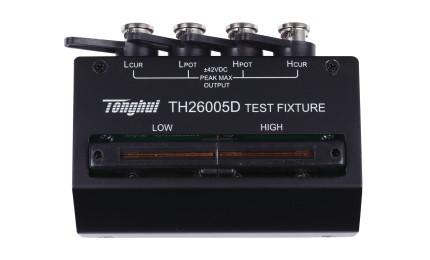

| Four-end clamp with card | TH26005D |  |
||||

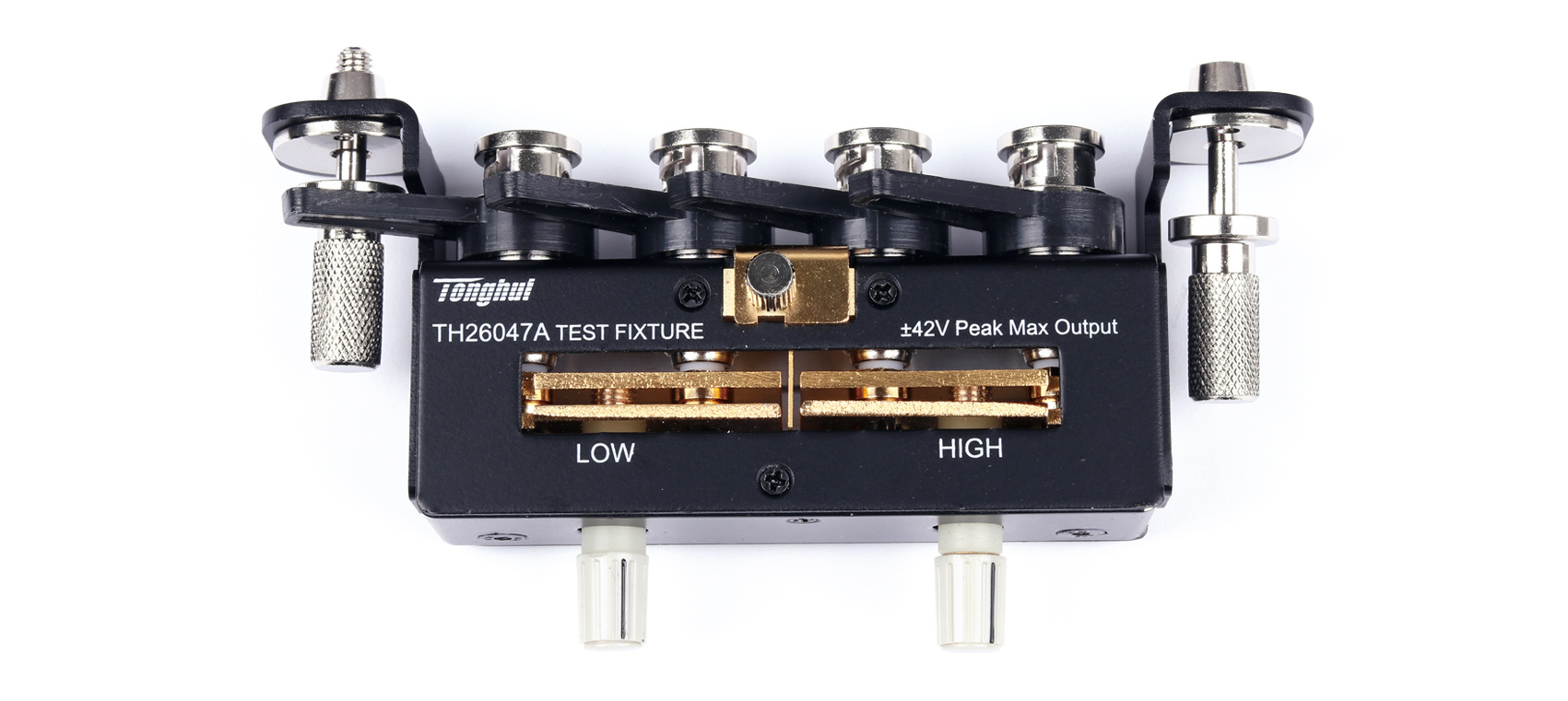

| Fixture | TH26047A |  |
||||

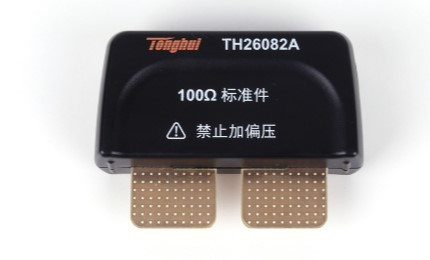

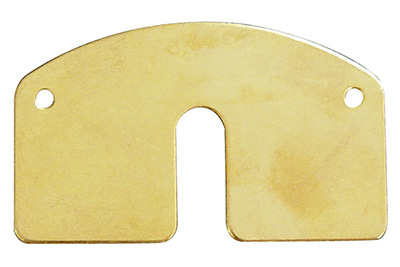

| 100Ω Standard Resistance | TH26082A |  |
||||
| Short circuit | TH26010 |  |
||||

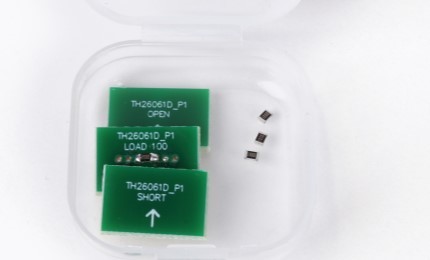

| TH2851 Calibration Kit |  |
|||||
| Optional | ||||||
| Accessories name | Model | |||||

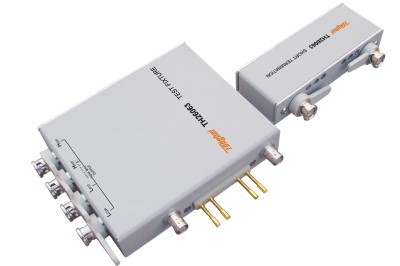

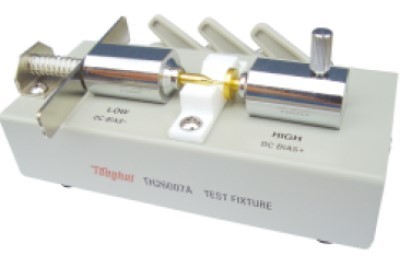

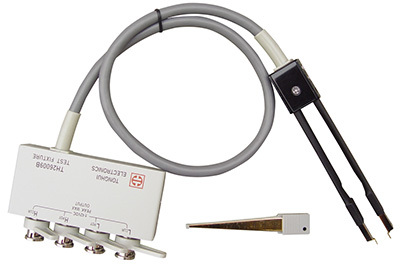

| Magnetic ring fixture | TH26007A |  |
||||
| Box patch test cable | TH26009B |  |
||||

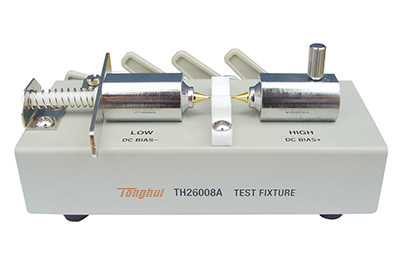

| Magnetic ring fixture | TH26008A |  |
||||

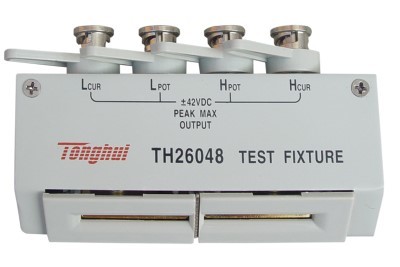

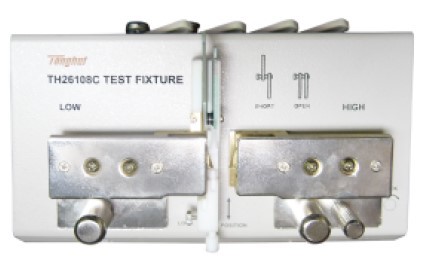

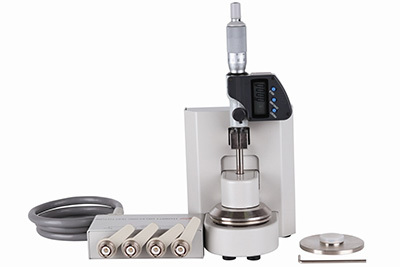

| Test Fixture | TH26048 |  |
||||
| Test Fixture | TH26062A |  |
||||
| Test Fixture | TH26063 |  |
||||
| High Frequency Test Fixture | TH26018C |  |
||||
| Dielectric test fixture | TH26077 |  |
||||
